Features
٠ Detachable
Fixture Control Pendant
٠ Headstock: Direct Helical
Gear Drive with Monolithic rigid all steel frame
٠
Bed: Rigid - all steel construction. Saddle &
Tailstock ride on precision high
capacity
preloaded Bearing System
٠ Tailstock: Rigid all
construction with full range of alignment adjustment(s)
٠
Independent Tailstock pusher System - maintains alignment
over full range of
thrust
٠
Torch Head swings to rear of tool for clear access when
loading & unloading
workpiece
٠
Detented and locking Torch Tower Head Pivot for overhead
loading
|
Typical Options
Headstock٠
Rotary spindle ID gas purge
٠ Up to 3.00" (7.6cm)
spindle through hole
٠ Load capacity to 1,000 lbs
(454 kg)
Tailstock ٠
Rotary gas purge
٠ Up to 3.00" (7.6cm) spindle
through hole
٠ Thrust load to 500 lbs (2,227 N)

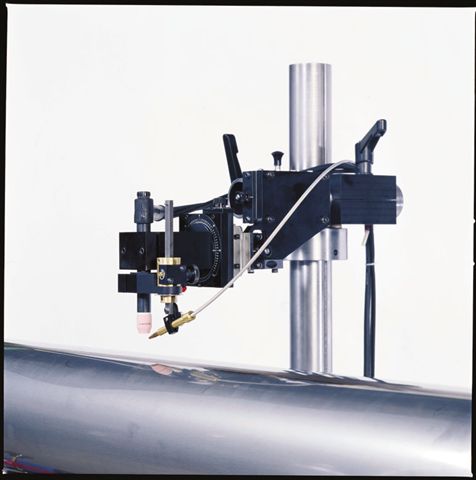

Torch Tower
٠ Motorised Z-axis
٠ Motorised torch mount
rotary stage
٠ Dual Torches |
Additional Options

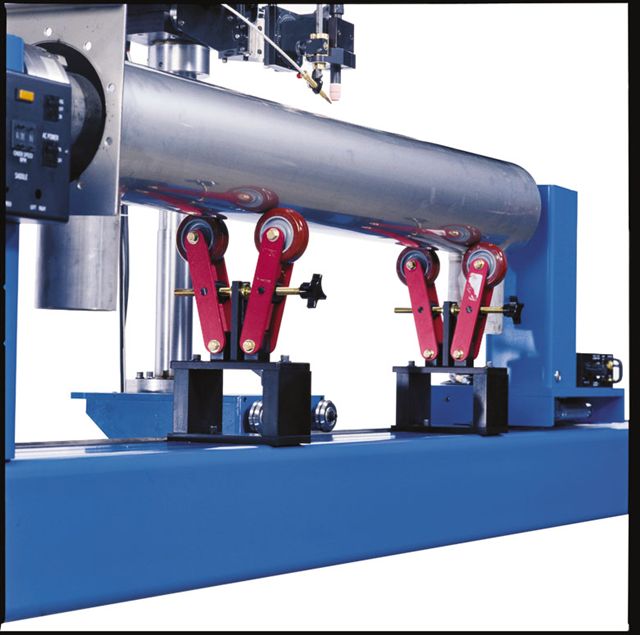

٠ Workpiece steady rest(s)
٠ Custom tooling
to hold / locate
workpiece
٠
Computer controlled turn-key
systems
٠ Custom designed positioners
٠ Side beam
carriage
|
|
Basic
Model Number |
DIM A |
DIM B |
DIM C |
DIM D |
DIM E |
DIM F |
DIM G |
|
(in) |
(cm) |
(in) |
(cm) |
(in) |
(cm) |
(in) |
(cm) |
(in) |
(cm) |
(in) |
(cm) |
(in) |
(cm) |
|
CWL-30-48 |
48.0 |
121.9 |
84.5 |
214.6 |
30.0 |
76.2 |
21.5 |
54.6 |
34.2 |
86.9 |
41.6 |
105.7 |
62.5 |
158.8 |
|
CWL-30-72 |
72.0 |
182.9 |
108.5 |
275.6 |
|
CWL-30-120 |
120.0 |
304.8 |
156.5 |
397.5 |
|
CWL-30-144 |
144.0 |
365.8 |
180.5 |
458.5 |
|
CWL-36-48 |
48.0 |
121.9 |
84.5 |
214.6 |
36.0 |
91.4 |
24.5 |
62.2 |
37.2 |
94.5 |
44.6 |
113.3 |
68.5 |
174.0 |
|
CWL-36-72 |
72.0 |
182.9 |
108.5 |
275.6 |
|
CWL-36-120 |
120.0 |
304.8 |
156.5 |
397.5 |
|
CWL-36-144 |
144.0 |
365.8 |
180.5 |
458.5 |
(Available in
any length) |
|
 |
|
Specifications
٠ Input voltage: 100/125 200/250 VAC 50/60
Hz 100 VA
٠ Shop air: 90PSI - filtered
٠
Speed range .01 to 30.00 Rpm
٠ Speed accuracy:
0.10% of full scale
٠ T.I.R. .001 in .025 mm
٠ Weld current capacity: up to 300 Amps
٠
Spindle through hole: 1.27in (3.22cm)
٠
Tailstock stroke 3.00 in (76 mm ) live centre
٠
Maximum tailstock thrust force
(90 PSI shop air): 160
lbs. (708 N)
٠ Workpiece weight capacity: 250
lbs. 113 kg
