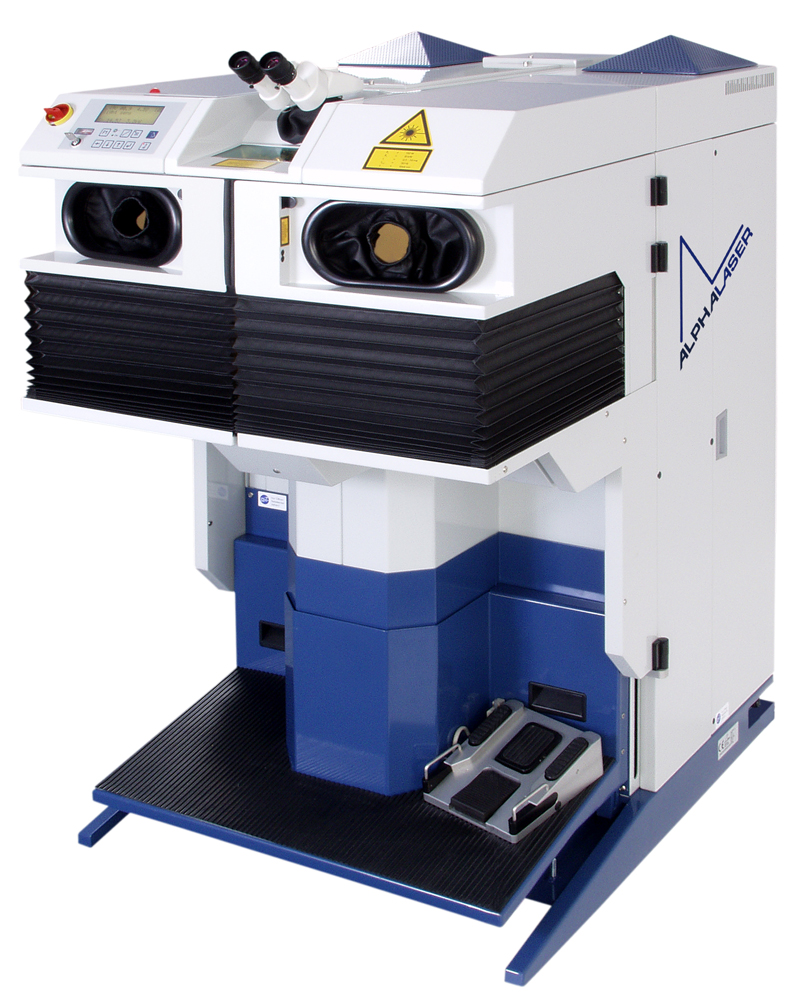

ALW YAG lasers

• The standard welding laser machine for material deposit and  welding in mould repair and tool manufacturing.





• The 3-axis positioning system (4th axis optional) allows a controlled movement of tools up to 350 kg underneath the laser beam.


• The working angle of the laser beam can be set individually. The ergonomics of this machine ensures a relaxed working position.



• PC control software to automate small batch production.



• CPC (Constant Power Control) offers a more efficient absorption of the laser energy by the material. Improved welding especially of aluminium and nitride steels.



• Bottom plate with foot-switch is adjustable in height.



• Application: Mould and tool manufacturing, thin sheet processing, medical technology, sensor production.

  For ALW TECHNICAL DATA Click Here

Click Image to Enlarge

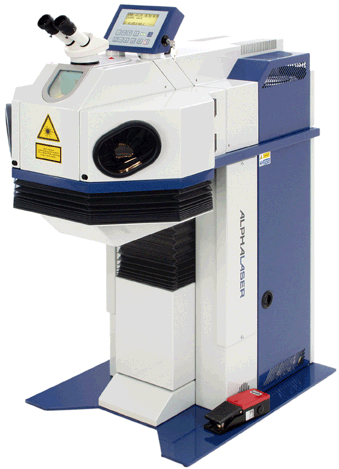

ALV

• Welding laser for small and medium sized parts with and without deposit material.  Controlled movement (via Joystick) of the work piece by 3-axis positioning system in the working chamber for work weighing up to 50 kg.


• Options: Multifunctional-foot control for setting the laser parameters (e.g. during repair of moulds and tools).
  Rotating table to handle cylindrical parts.
  Coaxial illumination for ideal illumination of cavities in the work piece.


• Application: Mould and tool repair. Fine welding of mechanical parts. Medical technology. Sensor production. Thin sheet processing.

  For ALV TECHNICAL DATA Click Here

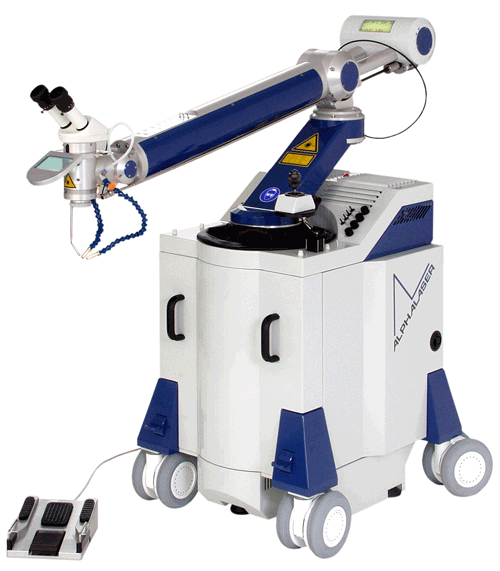

ALM

• The mobile welding laser ALM is suitable for on site repair of large moulds and other machinery which is difficult to move.



• A flexible laser arm with turn-and tilt able processing head and focus ranges of a few hundred mm allow welding in any position whatever, even in deep cavities.



• Application: Deposit welding/Welding of moulds of any sizes, repair of machine parts, turbine blades.

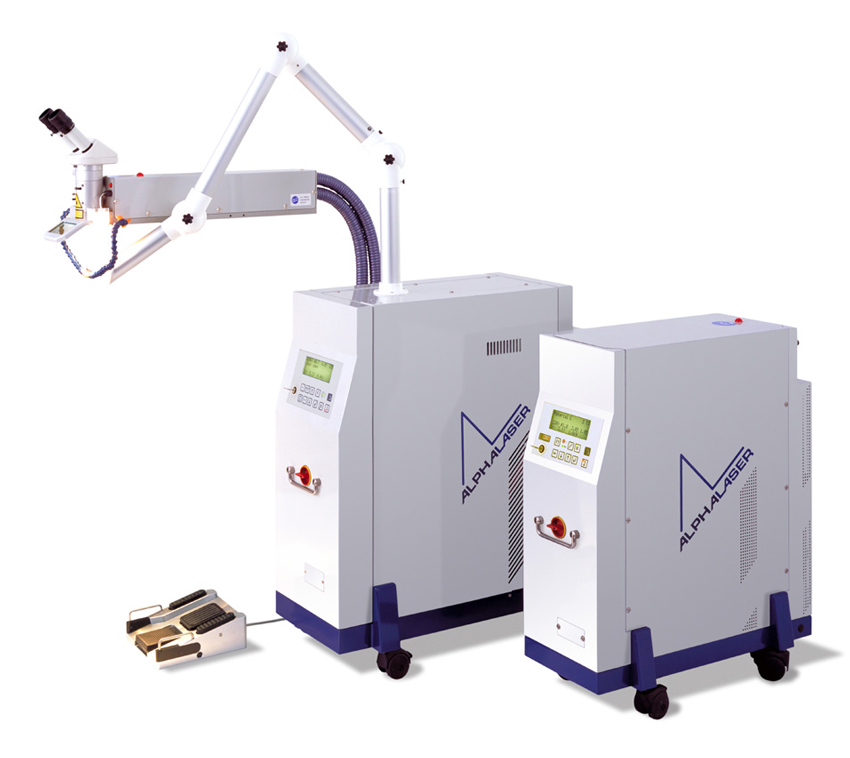

AL

• This laser welding machine is suited for applications which require high pulse energy or pulse power, e.g. welding of aluminium and copper. It is mainly used for repair and material deposit in mould and tool manufacturing and for thin sheet treatment.



• Application: Welding of precious metal, copper and aluminium, Mold repair and tool repair.

   Click Images to Enlarge

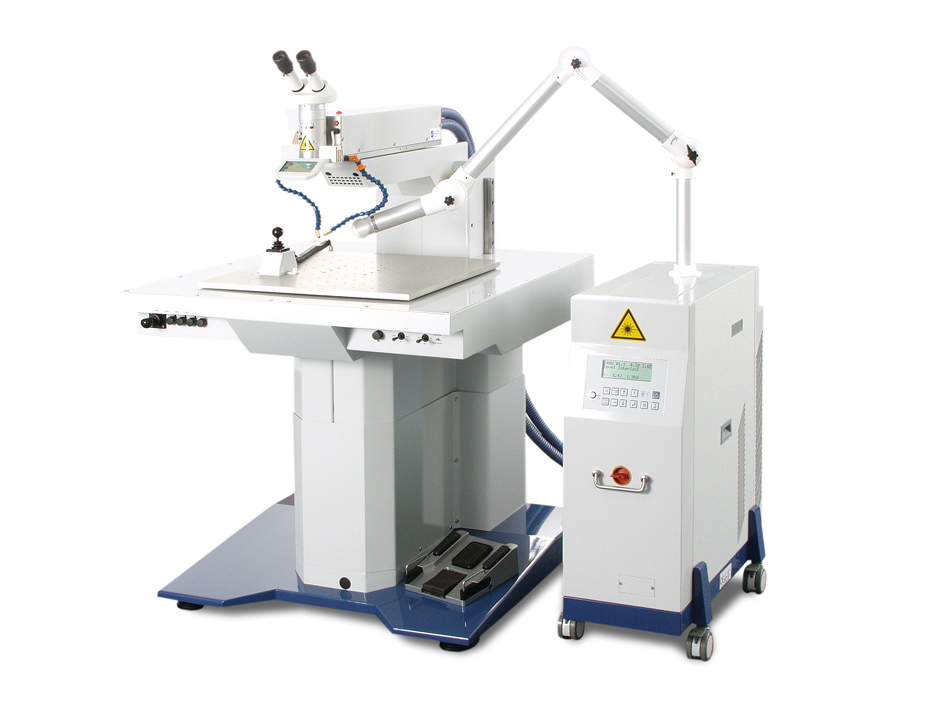

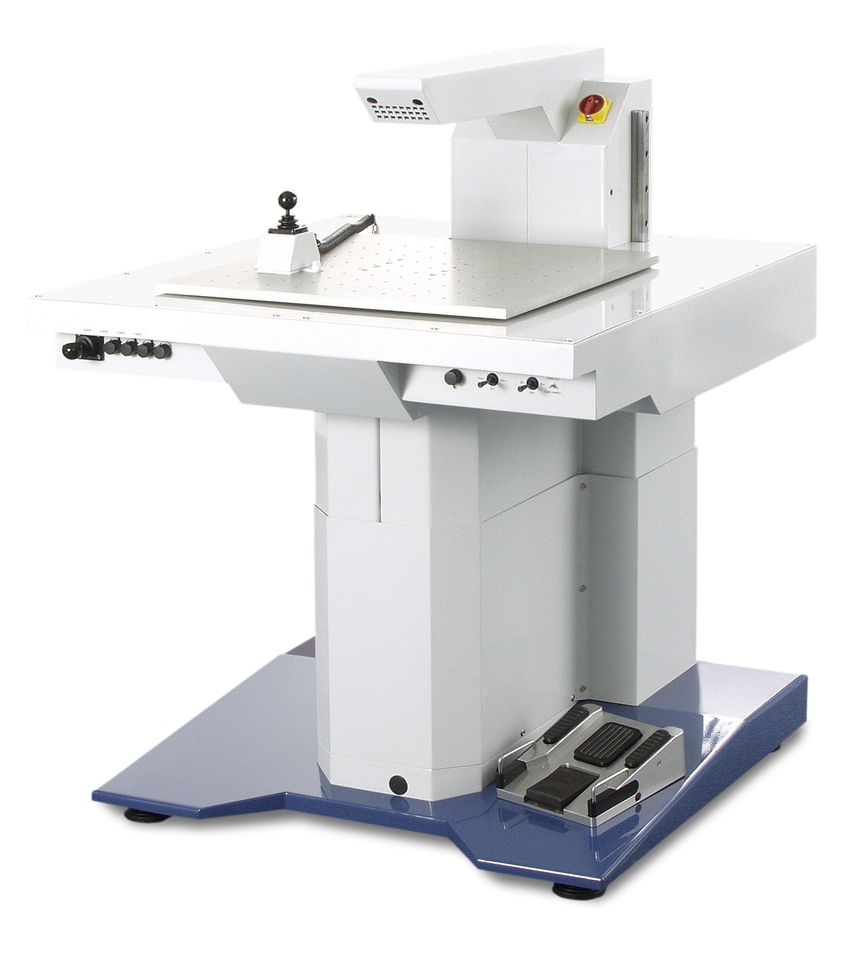

LASER WORKING TABLE

• The working table allows a controlled movement of tools during welding. The working space is not limited.



• Application: Mould and tool manufacturing, thin sheet processing, medical technology, sensor production.

  For LASER WORKING TABLE TECHNICAL DATA Click Here
