PRECISION WELDING LATHES - WELDING TURNTABLES

See also: Heavy Duty Rotary welding manipulators

Horizontal/vertical bench welding lathes/turntables are selected when axial pressure is required to position and tool the assembly for welding.

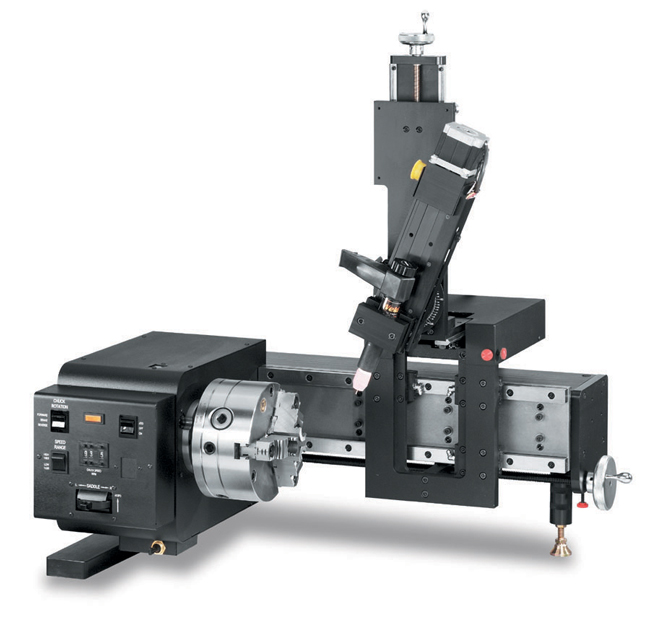

Precision Welding TurntablePrecision Welding Turntable

System Features:

●  Headstock with precision bearing.  Stainless steel spindle has spring loaded
    copper grounding shoes to transfer welding current.  2 x 8 thread on
    spindle (with pilot) allows work holding devices to be interchanged.
    Rotational speed computer controlled through the AWS-200 system or
    manually set on standalone systems
.

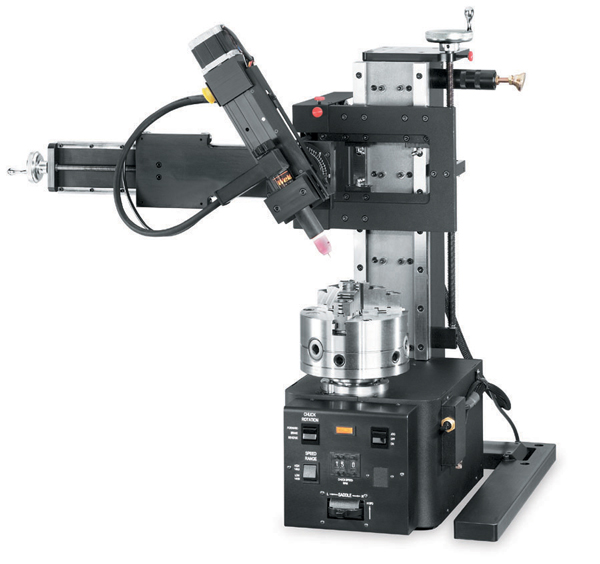

Precision Welding Turntable

●  Square steel tube backbone in innovative
    orientation provides stiffness
    and open work area.

●  Adjustable speed motorised saddle carries pneumatically
    actuated torch
    tower (advance/retract) with over centre adjustment.  Torch tower also
    includes vertical manual slide and graduated protractor for torch angle
    adjustment.

●  Supports up to 15 diameter part.

●  Distance between headstock and tailstock in various lengths, measured
    from the face of the chuck back-plate to the tip of the live centre in the
    retracted position.

●  Includes 3-jaw chuck, pneumatic hose and coupling, power cord,
    interconnect cables and ground cable.

●  NEW: OPTION Swinging toolstock
