AWS-200N Front Panel
This smart
looking front panel eliminates all the switches and knobs of
yesteryear! The notebook
can be stored in the
locked storage drawer or
maybe used as a desktop system.
|

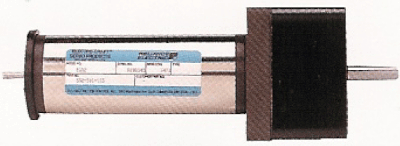

A.D.C.-3"/6"-200 Arc
Distance Control
Weldlogic model
A.D.C. is a dual function automatic torch positioner. The
A.D.C. can be programmed to provide a fixed tungsten to work
distance in .001" increments and also provides continuous arc
distance control during the duration of the weld.
The A.D.C. is
available in a 3.0" & 6.0" stroke.

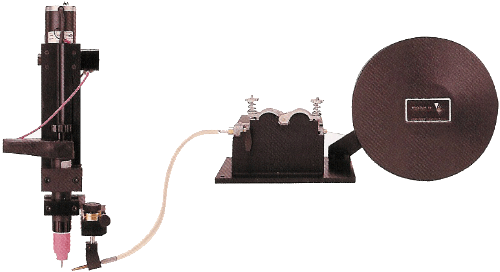

C.W.F.-200 Cold Wire Feed
Weldlogic model C.W.F. is a closed loop tachometer feedback for
high accuracy feed rates of 0.1 to 100.0 inches per minute.
A planetary drive mechanism provides a positive production worthy
feeder for wire Dia. .010 to .093. The 3 axis
manipulator places the wire in the optimum position in the weld
puddle and stays in the position you've selected.
 |

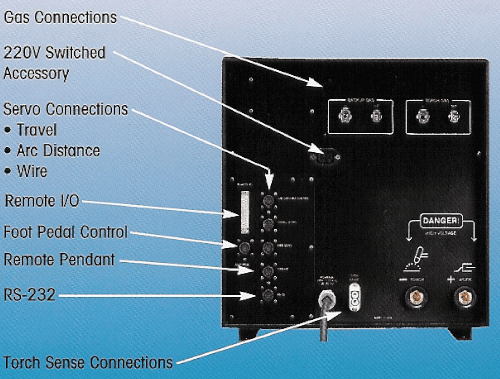

AWS-200N Rear Panel
This rear panel
provides easy access to all interconnects. Clean cable runs
and none
of the external servo boxes we're so used
to
seeing in this industry.
AWS Monitoring
Software for
Data Acquisition
|

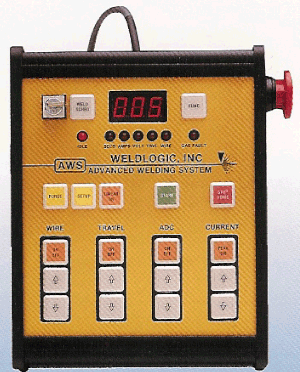

R.P.W.-200 Remote
Pendant
This lightweight
remote operators pendant provides overrides, jogs, start, stop,
purge, weld/setup. The keylocked weld schedule allows the
operator to access any of the 60 internal weld schedules resident
in the welder. The function key allows the operator to
select which servo feedback to display.
